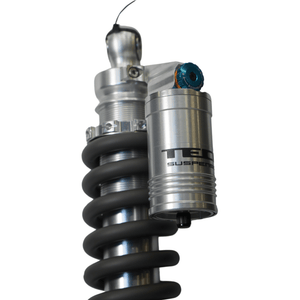

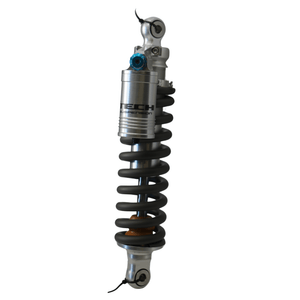

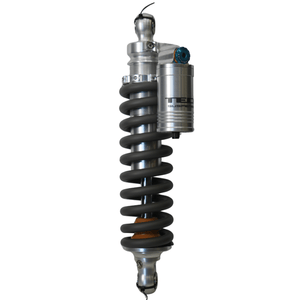

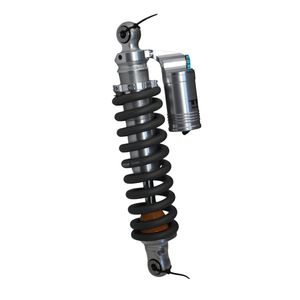

TECH ER30 310mm Arctic Leopard EX Rear Shock

TECH ER30 310mm Arctic Leopard EX Rear Shock

Regular price $975.00
Regular price Sale price $975.00
Sale Sold out
Quantity

A high-performance shock that delivers a balance of support and sensitivity at the rear end of the bike.


COMPATIBILITY*

310 × 85 mm: Fits Arctic Leopard EX700 & EX800 (direct mount)


CUSTOM ADJUSTABILITY

Along with pre-load and rebound tuning, the ER30 is equipped with CTS (Compression Tuning System), a patented Formula / TECH Suspension innovation.

This system allows quick, tool-free adjustment of low- to mid-speed compression damping for varying terrain or riding style.

Spring rate options:

  • 78.8 N/mm (standard) — recommended for average-weight riders

  • 105.6 N/mm (optional) — ideal for heavier riders, high-impact riding, or aggressive terrain


PERFORMANCE FEATURES

  • Piggyback Reservoir: Increased oil volume for improved thermal stability during extended or aggressive riding.

  • Internal Floating Piston (IFP) with Double Seals:Prevents gas/oil mixing, ensuring consistent damping and long-term performance.

  • High-Profile MDU Bumper: Increases end-stroke support and improves bottom-out resistance.

  • DU Bushings: Low-friction, durable mounting that maintains precision under high load and harsh terrain.

View full details

Surface Preparation

  • Thoroughly clean the application area using isopropyl alcohol or a mild, residue-free cleaner.
  • Remove all dirt, grease, wax, and dust.
  • Ensure the surface is completely dry and smooth before applying.

Positioning the Decal

  • Before removing the backing, test-fit and align the decal on the surface.
  • Use masking tape to hold it in place if needed.
  • Once aligned, flip the decal up and slowly peel away the backing paper.

Applying the Decal

  • Starting from the center, press the decal down gradually, working from the center outward.
  • Use your hand, a soft squeegee, or a microfiber cloth to remove air bubbles as you go.
  • Apply firm, even pressure across the entire decal.

Post-Application & Heat Treatment

  • Once applied, go over the decal again with firm pressure to ensure full contact.
  • Carefully heat-treat the decal using a heat gun or small torch to activate the adhesive and help the vinyl conform to the plastic. Use low heat and keep the heat source moving at all times.

    Do not overheat — excessive heat can burn, distort, or damage the vinyl and laminate.
  • The vinyl should become slightly warm and more flexible, not hot.

This heat-treat step is critical for long-term adhesion, especially on curved plastics and high-wear areas.
