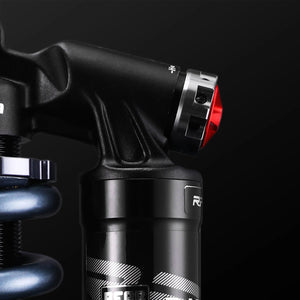

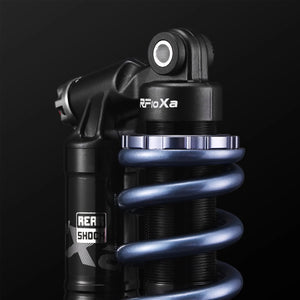

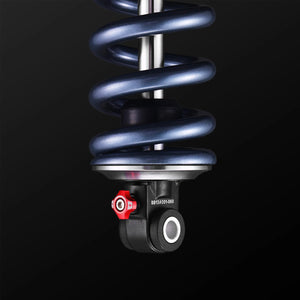

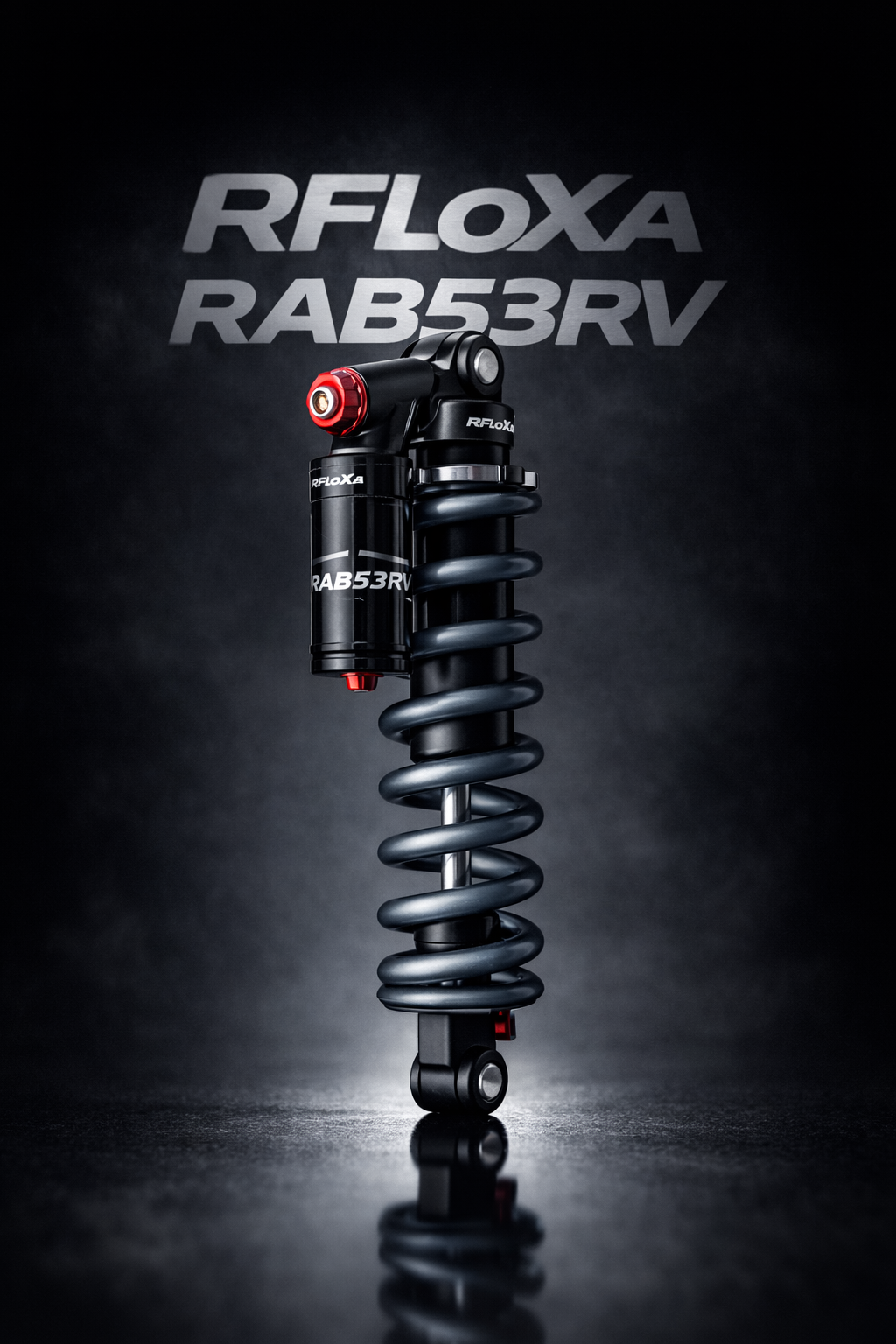

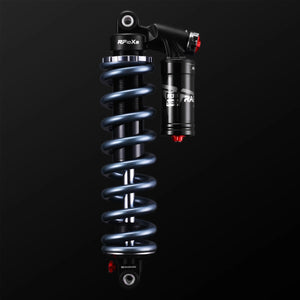

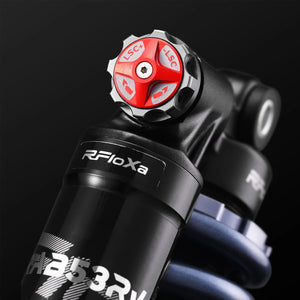

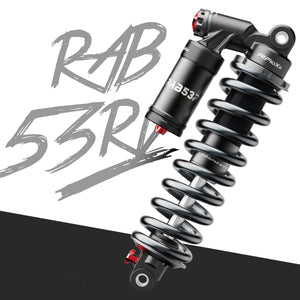

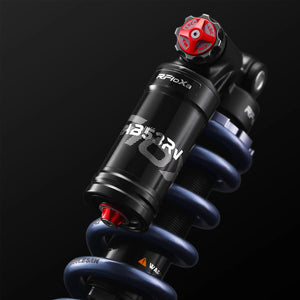

RFloXa RAB53RV Reservoir Rear Shock

$259.00

Sale Sold out

NOTE: The spring preload is recommended to be around 10mm; excessive preload will lead to spring deformation, resulting in the spring side wear phenomenon.

① Advanced Shock Absorption - The RAB53RV rear shock absorber features an external nitrogen reservoir and a sophisticated oil-gas separation damping structure. Designed to provide superior shock absorption, it effectively reduces impact and enhances riding comfort across a wide range of conditions.

② Versatile Performance - Ideal for E-BIKES, bicycles, and off-road electric bikes, the RAB53RV is built to handle diverse terrains and challenging rides. It offers comprehensive adjustability with multi-stage rebound, high-speed compression, and low-speed compression damping settings. Customization options are available upon request.

③ Durable Construction - Constructed with AL6061-T6 forged aluminum for the upper mount and AL6061-T6 aluminum alloy for the main tube, this shock absorber ensures exceptional strength and durability. The 42CRMO main shaft and 55CRSI spring wire further enhance its robustness and reliability.

④ Precision Adjustments - Equipped with multi-stage rebound and compression damping adjustments, the RAB53RV allows you to fine-tune the shock absorber for your specific riding style. The C-ring retainer spring base ensures stability during rides, while the easy-to-remove spring design simplifies maintenance.

⑤ Enhanced Comfort - The shock absorber features a rubber bladder in the air chamber, reducing heat-induced damping fade and providing a finer response to small bumps. The low-speed compression damping controls the shock absorber's performance during gradual impacts like pedal strokes and rough terrain, while the high-speed compression damping handles sudden impacts and high-speed encounters, ensuring stability and control during intense riding moments.

High and Low-Speed Compression Damping Explained:

Low-Speed Compression Damping (LSC): This setting controls the shock absorber's response to gradual impacts and low-speed movements. It’s essential for reducing bounce and instability during everyday riding activities such as pedaling, climbing stairs, or traversing uneven surfaces. Proper adjustment of LSC enhances ride stability and comfort.
High-Speed Compression Damping (HSC): This setting manages the shock absorber's response to rapid impacts and high-speed situations, such as drops or sudden bumps. It prevents the shock absorber from becoming too soft during intense impacts, maintaining control and stability to prevent loss of balance and potential accidents.

Features:

External Nitrogen Reservoir
Oil-Gas Separation Damping Structure
Multi-stage Rebound, High-Speed Compression, and Low-Speed Compression Damping Adjustment
AL6061-T6 Forged Upper Mount
AL6061-T6 Aluminum Alloy Main Tube
42CRMO Main Shaft
55CRSI Spring Wire
C-ring Retainer Spring Base for Stability
Easy-to-remove Spring Design
Rubber Bladder in Air Chamber for Enhanced Small-Bump Absorption
One-Step Lock Com Adjuster

Fitment Bike:

Talaria MX3 / MX4 / XXX / MX5
Altis Sigma
E-Ride Pro S / SS 1.0/2.0/3.0 SR
SurRon LBX, LBS, L1E
Segway X-260 / X-160
Rawrr Mantis
79 Bike Falcon M
Ventus One
RFN Apollo
Rerode R1

View full details

CHOOSE YOUR FINISH

All 9 finishes are available on this product. Pick the look that suits your build — each finish is selectable in the dropdown above.

Gloss

Classic high-shine finish that enhances color depth.

Matte

Soft, low-shine look for a stealthy, OEM-style appearance.

Sparkle

Eye catching sparkle with a gloss finish

Chrome Gloss

Reflective chrome base with a high-shine clear coat.

Chrome Matte

Chrome base with a soft matte top coat — metallic without the mirror.

Chrome with Sparkle

Chrome vinyl base with silver flake laminate. Our most-ordered finish.

Holographic Gloss

Iridescent rainbow shift under high-shine clear laminate.

Holographic Matte

Holographic base with a soft matte laminate.

Holographic with Sparkle

Holographic base layered with silver flake laminate.

Surface Preparation

Thoroughly clean the application area using isopropyl alcohol or a mild, residue-free cleaner.
Remove all dirt, grease, wax, and dust.
Ensure the surface is completely dry and smooth before applying.

Positioning the Decal

Before removing the backing, test-fit and align the decal on the surface.
Use masking tape to hold it in place if needed.
Once aligned, flip the decal up and slowly peel away the backing paper.

Applying the Decal

Starting from the center, press the decal down gradually, working from the center outward.
Use your hand, a soft squeegee, or a microfiber cloth to remove air bubbles as you go.
Apply firm, even pressure across the entire decal.

Post-Application & Heat Treatment

Once applied, go over the decal again with firm pressure to ensure full contact.
Carefully heat-treat the decal using a heat gun or small torch to activate the adhesive and help the vinyl conform to the plastic. Use low heat and keep the heat source moving at all times.

Do not overheat — excessive heat can burn, distort, or damage the vinyl and laminate.
The vinyl should become slightly warm and more flexible, not hot.

This heat-treat step is critical for long-term adhesion, especially on curved plastics and high-wear areas.
