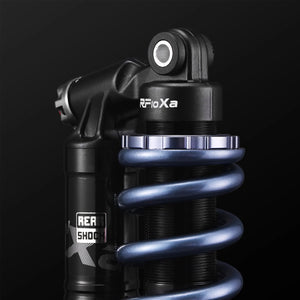

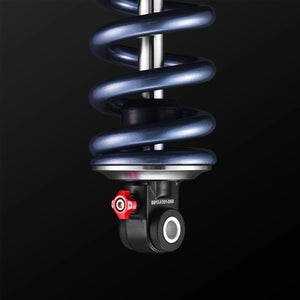

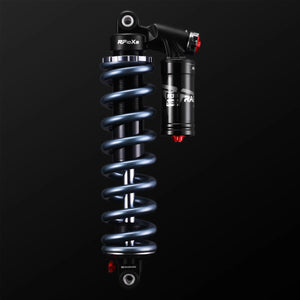

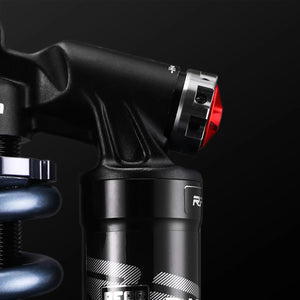

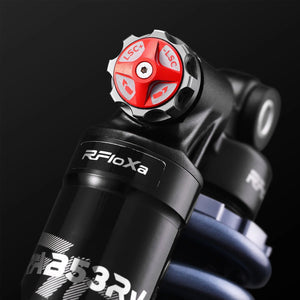

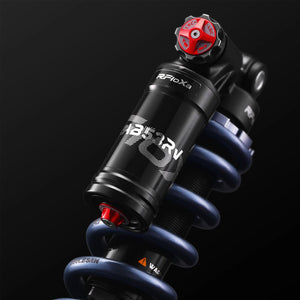

• RFloXa RAB50RC Reservoir Rear Shock
  • RFloXa RAB50RC Reservoir Rear Shock, view 2
  • RFloXa RAB50RC Reservoir Rear Shock, view 3
  • RFloXa RAB50RC Reservoir Rear Shock, view 4
  • RFloXa RAB50RC Reservoir Rear Shock, view 5
  • RFloXa RAB50RC Reservoir Rear Shock, view 6
  • RFloXa RAB50RC Reservoir Rear Shock, view 7
1 7

Modded Moto Co

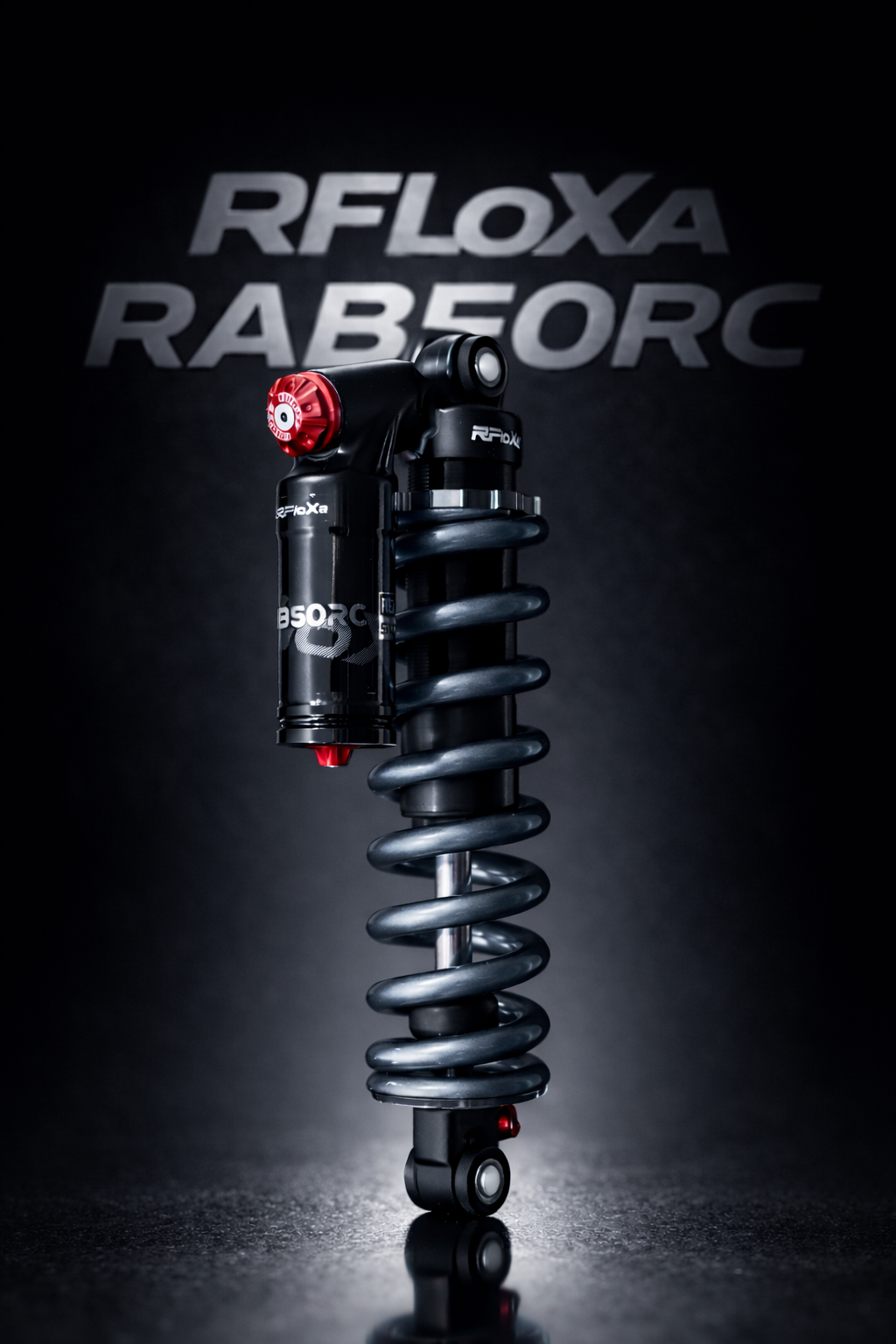

RFloXa RAB50RC Reservoir Rear Shock

RFloXa RAB50RC Reservoir Rear Shock

$150.00
$150.00
Sale Sold out

NOTE: The spring preload is recommended to be around 10mm; excessive preload will lead to spring deformation, resulting in the spring side wear phenomenon.

① Advanced Technology - The RAB50RC rear shock absorber features an oil-gas separation damping structure with an external nitrogen reservoir, providing exceptional shock absorption. Enjoy the smoothest rides, even on the roughest terrains.

② Versatile Use - This high-performance rear shock absorber is perfect for tackling various challenging road conditions and is ideal for E-BIKES, bicycles, and off-road electric bikes. Multiple specifications are available, and if your bike’s requirements are not listed, feel free to contact us for customization.

③ Unmatched Durability - Constructed from aerospace-grade AL6061-T6 aluminum alloy, the RAB50RC is designed to resist oxidation and enhance strength. It’s robust enough to handle all the demanding maneuvers you aspire to perform.

④ Comprehensive Adjustability - The rear suspension is equipped with rebound and compression damping adjustment knobs, allowing you to fine-tune your ride based on personal preferences. The spring hardness is adjustable via the toothed disk at the top of the spring—turn it down for a firmer feel or up for a softer response. Inflate the cylinder gas through the bottom valve for additional customization.

⑤ Reliable Warranty - We offer a one-year warranty service. Should any quality issues arise, please contact us for a replacement. We have full confidence in the RAB50RC’s performance, making it a highly cost-effective rear suspension option. Ensure to measure your bike’s rear suspension requirements accurately and select the appropriate size.

Features:

  • External Nitrogen Reservoir
  • Oil-Gas Separation Damping Structure
  • Multi-stage Rebound Damping Adjustment
  • Multi-stage Compression Damping Adjustment
  • AL6061-T6 Forged Upper Mount
  • AL6061-T6 Aluminum Alloy Main Tube
  • 42CRMO Main Shaft
  • 55CRSI Spring Wire
  • C-ring Retainer Spring Base for Stability During Riding
  • Easy-to-remove Spring Design
  • Fine and Smooth Rebound and Compression Damping Adjustment, with noticeable feedback at each stage
  • Rubber Bladder in the Air Chamber for Reduced Heat Fading of Damping and Enhanced Shock Absorption for Small Bumps

Fitment Bike:

  • Talaria MX3 / MX4 / XXX / MX5
  • Altis Sigma
  • E-Ride Pro S / SS 1.0/2.0/3.0  SR
  • SurRon LBX, LBS, L1E
  • Segway X-260 / X-160
  • Rawrr Mantis
  • 79 Bike Falcon M
  • Ventus One
  • RFN Apollo
  • Rerode R1
View full details

CHOOSE YOUR FINISH

All 9 finishes are available on this product. Pick the look that suits your build — each finish is selectable in the dropdown above.

Gloss finish sample

Gloss

Classic high-shine finish that enhances color depth.

Matte finish sample

Matte

Soft, low-shine look for a stealthy, OEM-style appearance.

Sparkle finish sample

Sparkle

Eye catching sparkle with a gloss finish

Chrome Gloss finish sample

Chrome Gloss

Reflective chrome base with a high-shine clear coat.

Chrome Matte finish sample

Chrome Matte

Chrome base with a soft matte top coat — metallic without the mirror.

Most Popular
Chrome with Sparkle finish sample

Chrome with Sparkle

Chrome vinyl base with silver flake laminate. Our most-ordered finish.

Holographic Gloss finish sample

Holographic Gloss

Iridescent rainbow shift under high-shine clear laminate.

Holographic Matte finish sample

Holographic Matte

Holographic base with a soft matte laminate.

Holographic with Sparkle finish sample

Holographic with Sparkle

Holographic base layered with silver flake laminate.

Surface Preparation

  • Thoroughly clean the application area using isopropyl alcohol or a mild, residue-free cleaner.
  • Remove all dirt, grease, wax, and dust.
  • Ensure the surface is completely dry and smooth before applying.

Positioning the Decal

  • Before removing the backing, test-fit and align the decal on the surface.
  • Use masking tape to hold it in place if needed.
  • Once aligned, flip the decal up and slowly peel away the backing paper.

Applying the Decal

  • Starting from the center, press the decal down gradually, working from the center outward.
  • Use your hand, a soft squeegee, or a microfiber cloth to remove air bubbles as you go.
  • Apply firm, even pressure across the entire decal.

Post-Application & Heat Treatment

  • Once applied, go over the decal again with firm pressure to ensure full contact.
  • Carefully heat-treat the decal using a heat gun or small torch to activate the adhesive and help the vinyl conform to the plastic. Use low heat and keep the heat source moving at all times.

    Do not overheat — excessive heat can burn, distort, or damage the vinyl and laminate.
  • The vinyl should become slightly warm and more flexible, not hot.

This heat-treat step is critical for long-term adhesion, especially on curved plastics and high-wear areas.
